Project Type: Residential
Area: 2,100 ft²

Project Manager: Mahmoud Kaddoura
Structural Engineer: DIOMIS Engineering Inc.

All images, drawings, and text were created myself unless otherwise noted.

In Brief:

Nestled just outside the downtown core and within the vibrant Trinity-Bellwoods neighborhood, the renovation and expansion of an early 20th-century Victorian 2-storey home aimed to bring a more comfortable, welcoming, yet intimate living space. Previously closed off from both the street and rear with a clustered interior on a narrow floor plate, a feature bay window now reaches out into public life, with the re-arrangement of the interior partitions embraces the narrow footprint by bringing a strong sense of directionality through the home.

responsibilities

• Periodic site visits for progress reviews

• Exploration of interior design options with the client,

• Addressing deficiencies flagged by inspector during construction

• Proposal of lighting/lighting controls, and power outlets

Working Drawings

A brief selection of working drawings produced by others, and subsequently worked on myself.

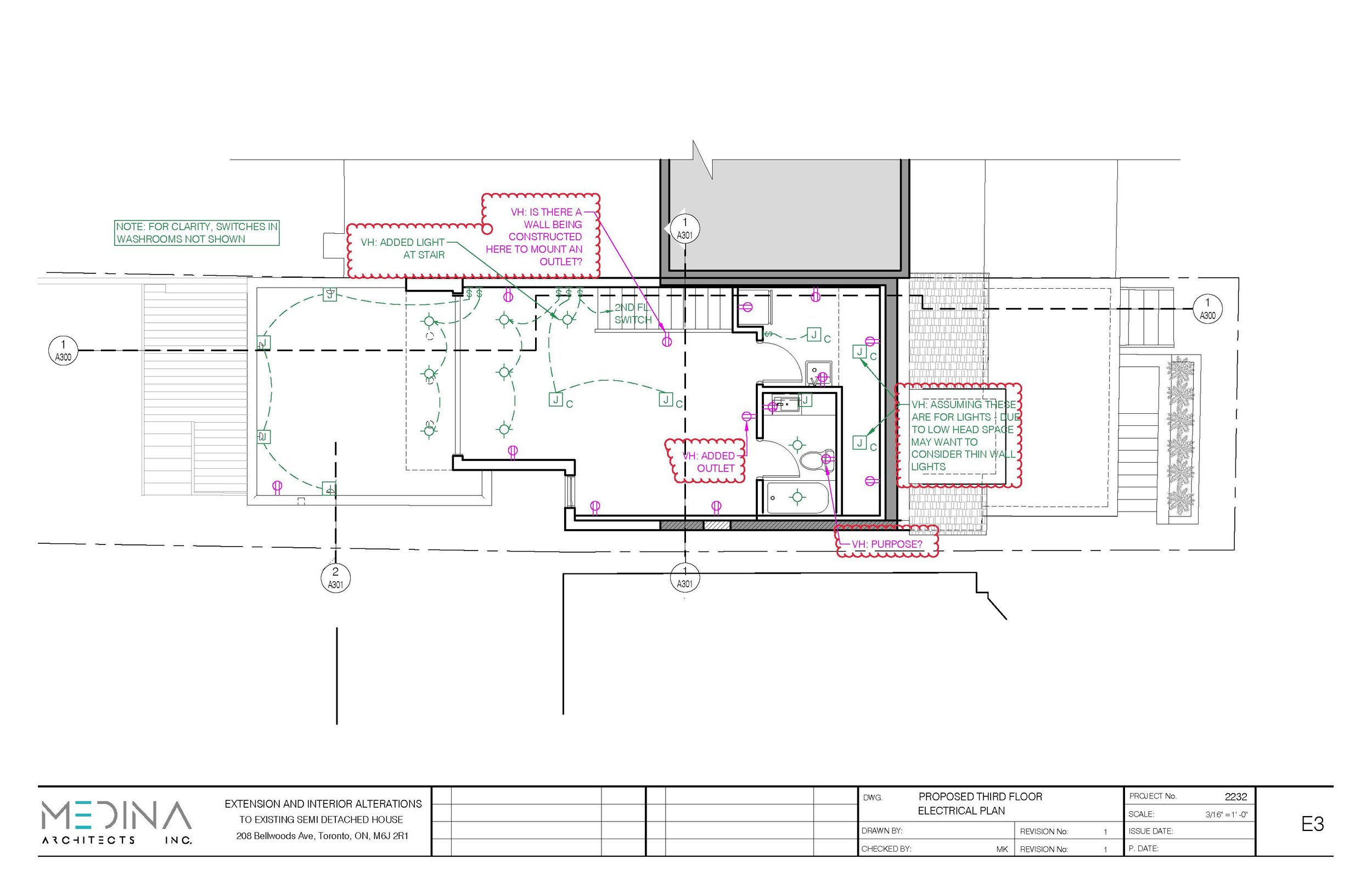

lighting & power diagrams
